Emtron 4.0 Bar MAP Sensor Kit
SKU 1301-40A
AU$220.00
Pre-order
Out of stock, available for pre-order
Emtron 4.0 Bar MAP Sensor Kit
Product Details
Brand: Emtron

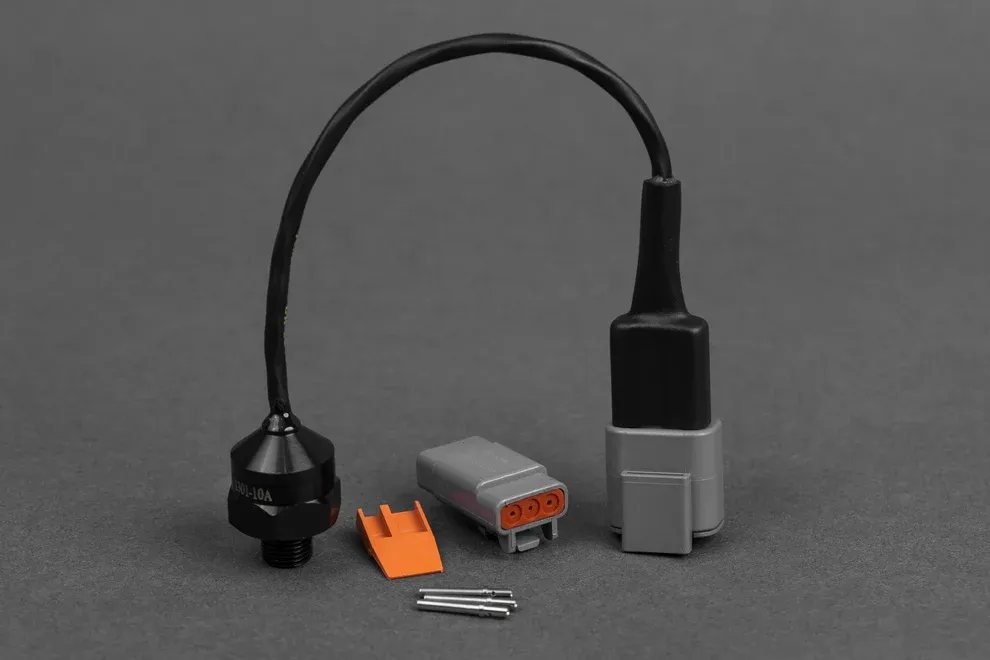

The Emtron 4.0 Bar MAP Sensor is a state-of-the-art, high temperature, media resistant absolute pressure sensor. It is highly accurate, providing an analog output signal proportional to the pressure applied.
Features:
Emtron MAP Sensor 4.0 Bar Data Sheet- Genuine NXP Pressure Sensor
- Pressure Range: 20kPa to 400kPa
- Max Supply Voltage: 4.70 to 5.30 Volts DC
- Output Type: Amplified, Ratiometric 0.0V - 5.0V
- Current Supply 6.0mA
- Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol
- Fully calibrated and temperature compensated from -40 DegC to +125 DegC
- Response time 1ms
- Media Type: Air
- Compact Design
- Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
- 1/8 NPT Thread
- DTM 3 Way Connector(mating end also supplied)
- Fully potted for a waterproof seal and resistance to shock and vibration
