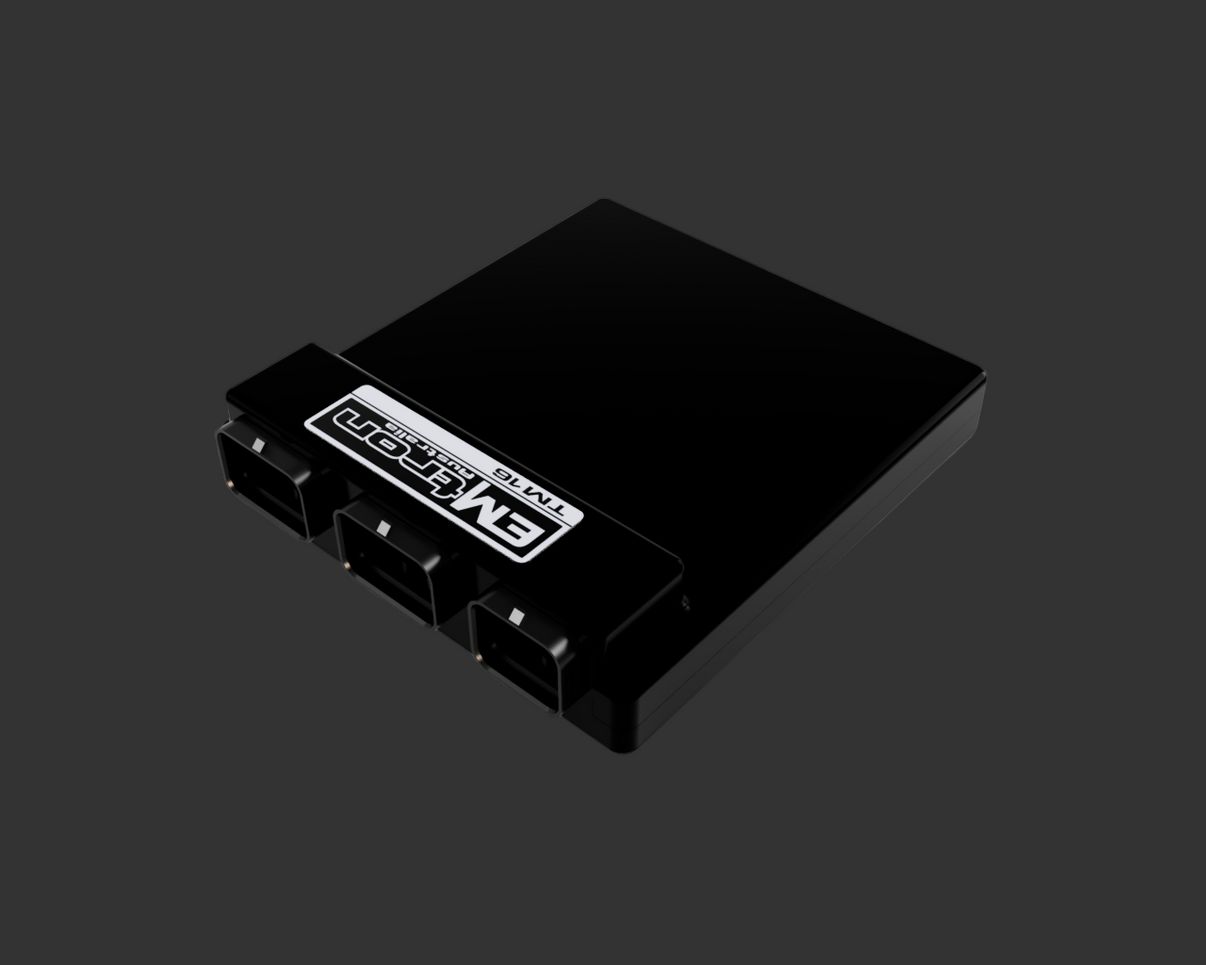

Emtron TM16 Transmission Control Unit

Emtron TM16 is a fully programmable Transmission Control Module aimed at controlling the most complex transmission and driveline components. Designed with an over abundant amount of processing power to allow for the implementation of extremely complex, no compromise control strategies allowing for the ultimate performance from your transmission.

Applications include Dual Clutch Transmission Control, Multi-Clutch Automatic Transmission Control, and Traditional Automatic Transmission Control.

✅ Dual 650MHz Processor

✅ Compatible with 12 and 24 Volt systems

✅ 16 x Low Side Proportional Current Solenoid Outputs

✅ 8 x Half-Bridge Auxiliary Outputs

✅ 4 x Protected Solenoid Power Supply Outputs

✅ 4 x Analogue Outputs

✅ 16 x Analogue Inputs

✅ 16 x Digital Inputs

✅ 4 x 2 Wire Hall Effect Wheel Speed Inputs

✅ IMU 3 Axis Accelerometer & Gyroscope

✅ 8 GB Data Logging Memory

✅ 2 x CAN 2.0A/B Busses

✅ 1 x RS232 Interface

✅ Ethernet Communications

ZF 8HP45/50/51

ZF 8HP70/75/76

ZF 8HP90

GS7D36SG E/F-series

GR6

DL800

PDK

DQ250/500

DATA SHEET
