LINK CAN KEYPAD 8 BUTTON

SKU 101-0237
AU$550.00
In stock
Share this product with your friends
ShareSharePin it

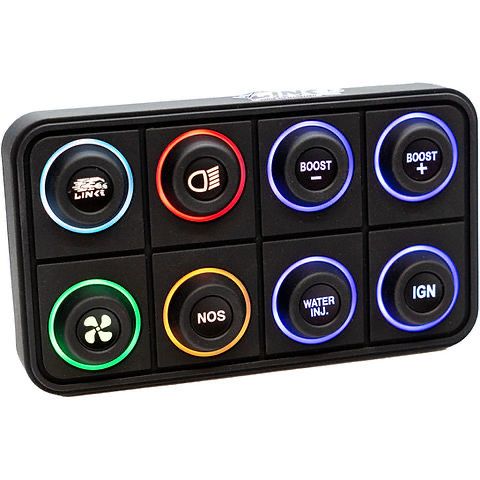

LINK CAN KEYPAD 8 BUTTON
Product Details
Brand: Link

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.
Can be installed both inside and outside, perfect for street, track and off-road use.


Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

•CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

•Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.

•IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

•Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards



Box Contents:
1 x 4/8/12 Button CAN Keypad - depending on option
1 x DTM4 Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo

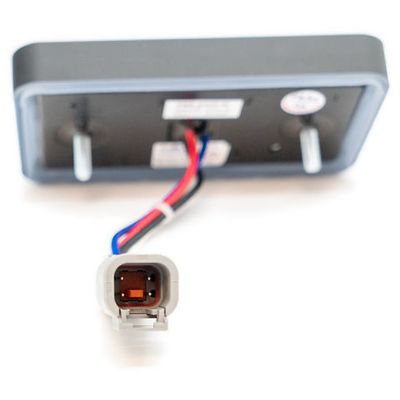

  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
    Switch Life - 3 million operations
    CANopen Node ID – 0x15 (21)
    Default Baud Rate - 1000kbit/s
    Ingress protection Rating – IP67/IP69K
    Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
    UV Protection - UVB 400 hours
    Salt Spray Per - ASTMB117
