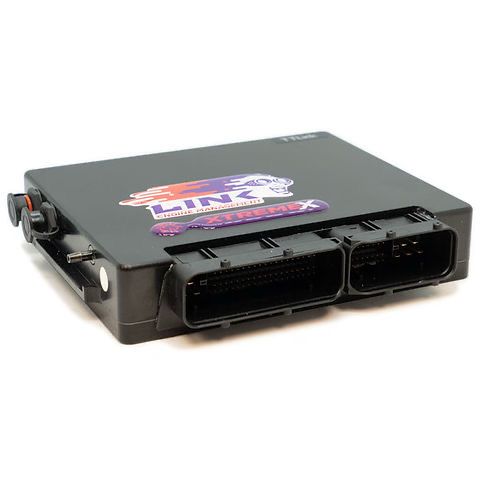

LINK G4X ECU TTLink - TTX

SKU 208-4000

LINK G4X ECU TTLink - TTX

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to maximize the potential from your car.
This ECU fits in the factory OEM location. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.
The Link G4X ECU TTLink TTX PlugIn Designed for the VWAG PQ34 1.8l Turbo enginewith E-Throttle.

This ECU works with manual transmissions only.
Includes an onboard 4 bar or 7 bar MAP sensor.
Most factory features are supported.
Check the features tab for I/O expansion options
This PlugIn ECU is not compatible with the CANJST cables. To connect to the CAN use CANLTW (PN 101-0211) or CANF (PN 101-0020)
Suitable applications:


Engine must be 1.8T
ECU header must have two connectors, 121 pin total
Must be Drive by Wire (E-throttle)
Must be manual transmission
FWD or 4WD (Haldex)


The following vehicles are known to be compatible:

Make
Model
Years
Engine code
Audi
TT
99-02
AJQ
VW
Beetle
2005
AWU
VW
Passat
2000

VW
Golf
2001
AUM

The following vehicles are likely to be compatible with the ECU, but are untested:

Make
Model
Years
Engine code
Audi
A3
98-00
AJQ

A3
99-00
APP

A3
99-01
ARZ

A3
00-05
ARX

A3
00-05
ARY

A3
00-05
AUM

A3
00-05
AUQ

A4
98-00
APU

A4
00-02
AVJ

A4
00-02
AWT

A4
02-03
BEX

A4
04-07
BFB

A6
98-00
APU

A6
00-02
AWT

S3
98-01
APY

S3
00-05
BAM

S3
02-03
AMK

TT
98-00
APX

TT
99-00
APP

TT
99-02
AJQ

TT
00-02
AMU

TT
00-05
ARX

TT
00-05
ARY

TT
00-05
AUM

TT
00-05
AUQ

TT
00-05
BAM

TT
00-06
AWP

TT
05-06
BFV

TT
05-06
BVP

TT
05-06
BVR




Seat
Alhambra
00-04
AWC

Ibiza
99-00
AQX

Ibiza
00-01
AYP

Ibiza
04-08
BJX

Ibiza
05-08
BBU

Leon
98-00
AJQ

Leon
99-00
APP

Leon
00-01
AJQ

Leon
00-05
ARY

Leon
00-05
AUQ

Leon
00-05
BAM

Leon
02-03
AMK




Skoda
Octavia
99-01
ARZ

Octavia
00-05
ARX

Octavia
00-05
ARY

Octavia
00-05
AUM

Octavia
00-05
AUQ




VW
Bora
00-05
ARX

Bora
00-05
ARY

Bora
00-05
AUM

Bora
00-05
AUQ

Bora
02-06
AWP

Golf
99-01
ARZ

Golf
00-05
ARX

Golf
00-05
ARY

Golf
00-05
AUM

Golf
00-05
AUQ

Golf
02
AWP

Golf
02-06
AWP

Jetta
01-09
AWP

New Beetle
99-00
APH

New Beetle
99-00
AVC

New Beetle
02-04
AWP

Passat
98-00
APU

Passat
00-02
AWT

Polo
04-08
BJX

Polo
05
AWP

Polo
05-08
BBU

Sharan
00-04
AWC

Vehicles with the following engine codes are known not to be compatible:
AEB, AGU, AJH, AJL
