MAD RACING LASER RIDE HEIGHT SENSOR HOLLEY CAN BUS

SKU MR-LASER-HOLLEY

This laser has a 0-5volt output and works with ANY ECU.

WITH HOLLEY CAN BUS FIRMWARE 2.2. Requires the matching CAN BUS cables sold separately.

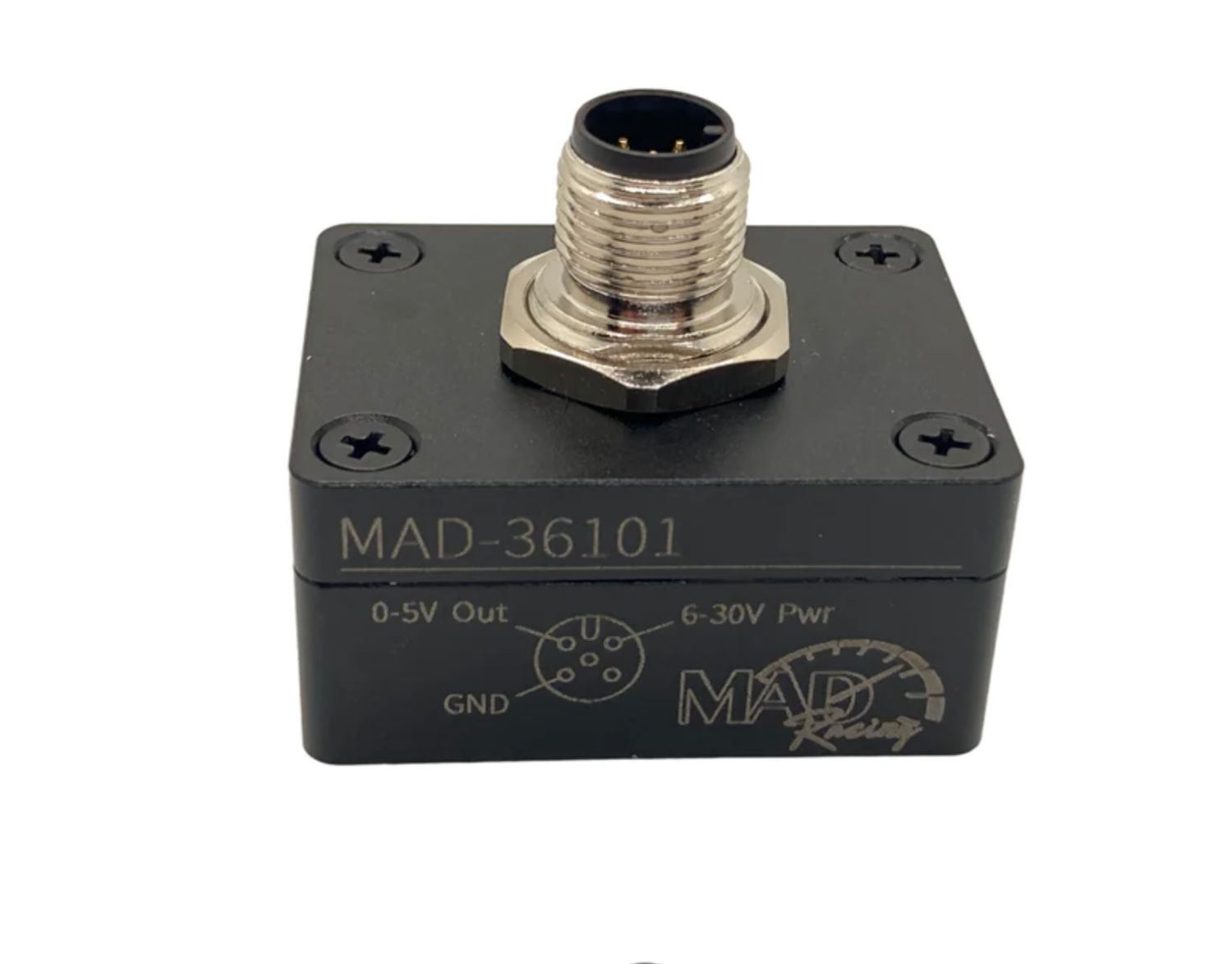

Mad Racing USA in-house manufactured laser is now available. Over two years from concept to finished product, this unit reads from as little as 3″ up to a whopping 38″ for you guys that can’t keep the front end down.

Low current draw of 17mA (0.22 Watts) powered by 12-24v vehicle power.

Standard direct 0-5 volt output with no special cables or adapters needed.

Small and lightweight just 1.700″ by 1.300″ and a mere 2.5 Ounces of weight.

Uses standard M12 cable.

Fast response- Can accurately report a 10″ change of distance in 0.05 seconds.

ToF sensor not affected by stray ambient light or shiny track surface.

Built in filtering so logs display accurately without any modification.

Should the sensor be operated out of it’s range the output stays constant, no dropping back to zero as with some sensors.

NEVER use solvents such as brake cleaner to clean the lens, it is acrylic and solvents can damage it beyond repair. Clean with a soft towel or brush.

Scaling- LINEAR

3″= 0.5 volts output

38″ = 4.9 volts output

Mounting screws are M3 x 0.5 mm Thread.

Holley users should select “MAD-36101 Laser Height” in the 5 volt sensor drop-down menu.

Tips for success-

Always mount your laser 4-10 inches from the ground, keep away from high heat sources such as exhaust pipes and turbochargers.

The laser needs a clear line of sight to the ground, be sure there are no parts of your car that impede a 4″ diameter clear line of sight from laser to ground.

Keep your laser dry, it is not rated to be submerged in liquid.

NEVER mount in a location that will expose lens to excessive dirt and debris buildup.

NEVER use solvents such as brake cleaner to clean the lens, it is acrylic and solvents can damage it beyond repair. Clean with a soft towel or brush.
