Maradyne Champion Series Fan 10" 12V / 130W 950 CFM M103K
+2

Maradyne Champion Series Fan 10" 12V / 130W 950 CFM M103K

SKU EF8906
AU$180.91
On Sale
was AU$190.00 Save 5%
In stock: 2 available
Share this product with your friends
ShareSharePin it
Maradyne Champion Series Fan 10" 12V / 130W 950 CFM M103K
Product Details
Brand: Maradyne

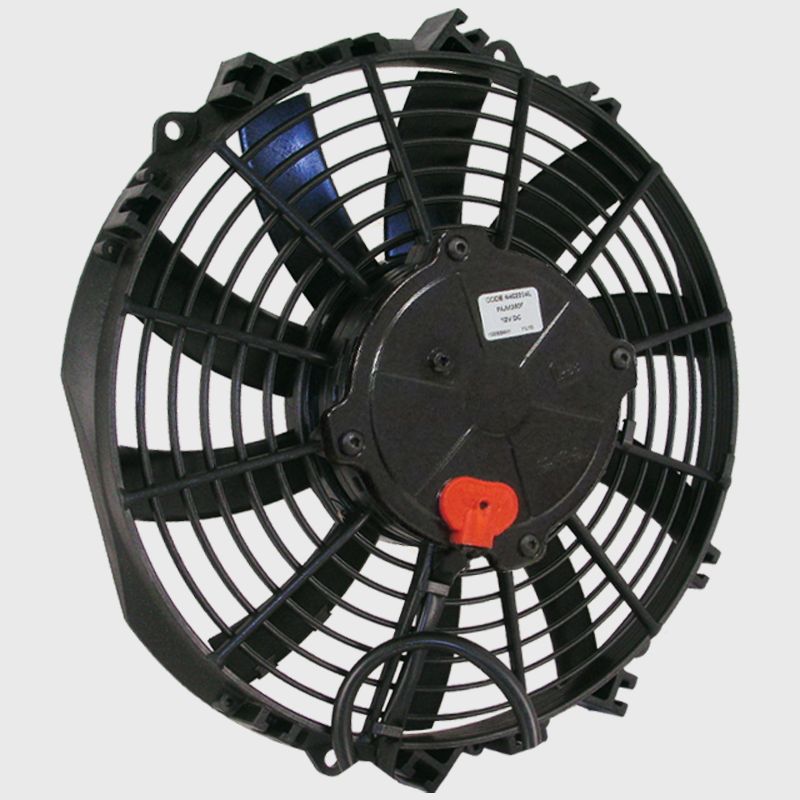

The M103K (EF8906) 12V 10" Maradyne Champion Series Fan features a reversible blade design which is rated up to 950 CFM / 1614 M3/h in the standard puller configuration.

The Maradyne Champion Series EF8906 10" Thermo Fan features a fully-sealed 130W motor (IP68) of superior quality and is backed with a 36-month manufacturers warranty (see below).


M103K 10" THERMO FAN DETAILS
Fan Model # M103K
Fan Series Champion Series
Voltage 12V
Motor LL 130W Heavy Duty
Flow Type Puller or Pusher (ships as puller)
Blade Diam. 10 inch (254mm)
Blade Type Skew
Shroud Type Finger Guard
Amps 7.9
CFM 950
M3/H 1614
Spec. Sheet View Specifications
Warranty View Warranty Info
Mounting View Mounting Instructions
Reversing View Blade Reversing Instructions
Included in Box
  • Thermo Fan
  • Wiring Pigtail
  • 4 x Mounting Feet
  • 1 x Nylon Tie Kit

M103K 10" THERMO FAN DIMENSIONS
A 270mm / 10.62"
B 247mm / 9.74"
C 142mm / 5.59"
D 290mm / 11.41"
E 67mm / 2.62"
M103K (EF8906) 12V 10
