WALBRO 525 L/HR FUEL PUMP F90000285 "WITH STRAINER AND CONNECTOR"
+2

WALBRO 525 L/HR FUEL PUMP F90000285 "WITH STRAINER AND CONNECTOR"

SKU EFP-530
AU$262.73
In stock
Share this product with your friends
ShareSharePin it
WALBRO 525 L/HR FUEL PUMP F90000285 "WITH STRAINER AND CONNECTOR"
Product Details
Brand: Walbro

Walbro / TI Automotive 525 lph Unleaded & E85 In Tank Fuel Pump.  This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels.  This modern design results in minimal noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023 (also available in our other listings).

The Walbro 525lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough.  If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.



For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. As of late 2019, these same pumps are branded with the TI Automotive name, carrying a legacy of more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.

TI Automotive products are manufactured in their plant in Caro, Michigan in the USA. We source our pumps from a registered Australian wholesaler, deliver them with holograms for authenticity and supply them with genuine fuel pump fitting kits and strainers.

***Beware of the Current (AMPS) draw of these pumps. Some standard fuel bulkhead pins cannot take the load and will burn out***
Refer to your Auto Electrician for correct installation.

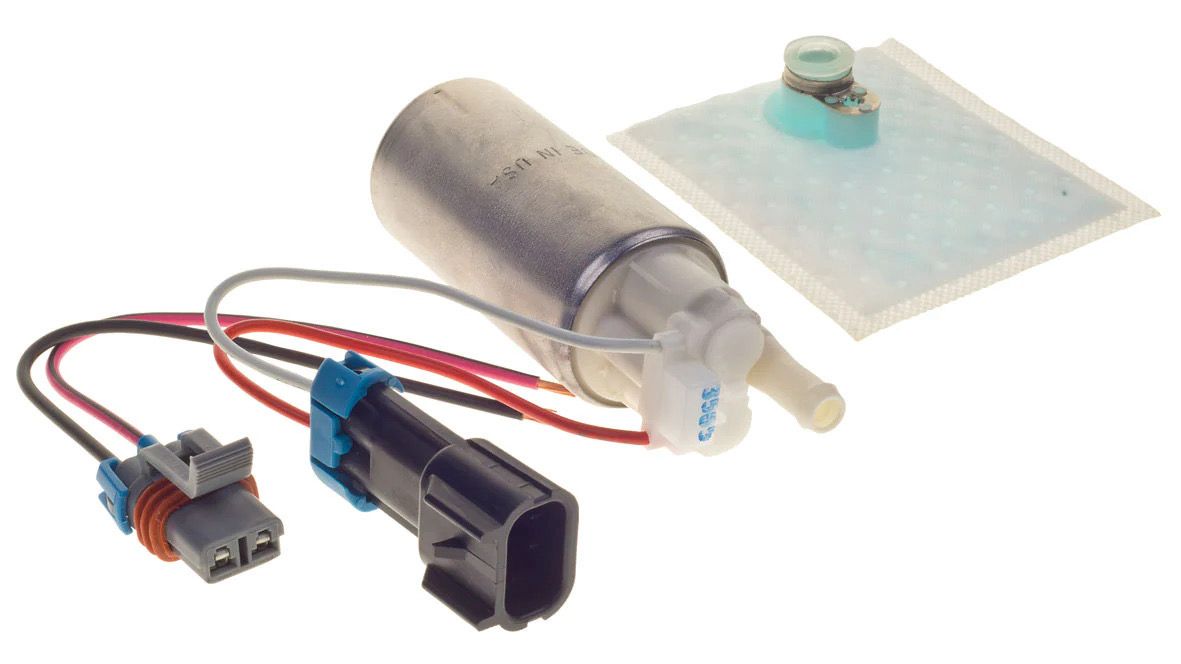

Kit includes:
1x Genuine Walbro 525 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

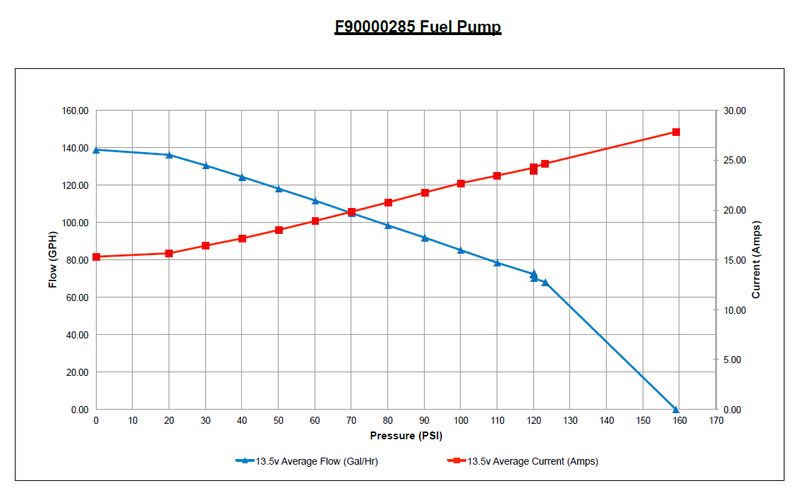

Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts

​F90000285
